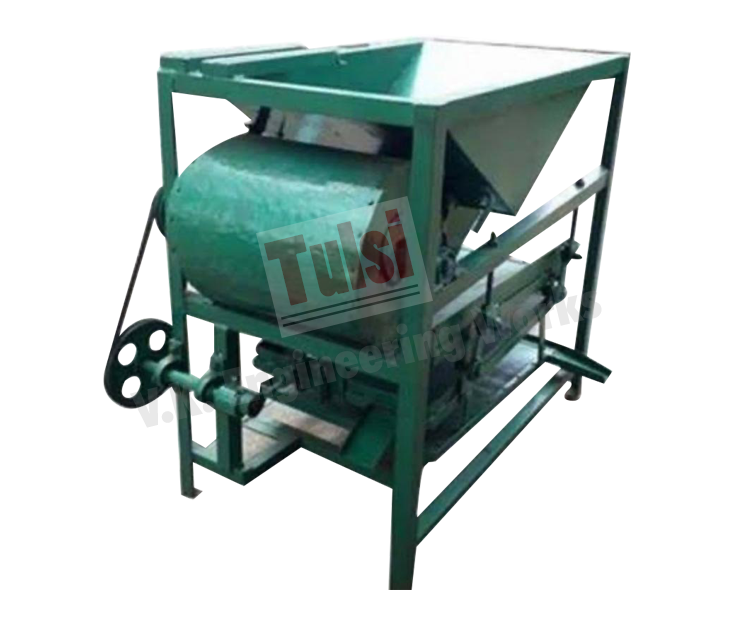

Seed Cleaner
Used for cleaning/ grading of oilseeds by means of a set of two sieves (to remove coarse and fine impurities) and attachment to the aspiration system (to remove low-density matter).
Construction:
The frame structure is made of steel channel with the fully enclosed sieve box suspended at its four corners on rubber bushes. The box consists of two decks with ball cleaned sieves. The vibrator drive is located in the center of the machine. The vibratory movement of the sieve increases both the capacity on a given sieve-surface and the sieve effect.Capacity Ranging from 1-10 TPH
Features
» Thorough removal of dust, sand, stones or unwanted particles.» Easy to operate
» Custom designed as per Seed/ Grain size.
» Enhances life of spares of Oil Expellers.
» Magnet at discharge end for removal of iron pieces

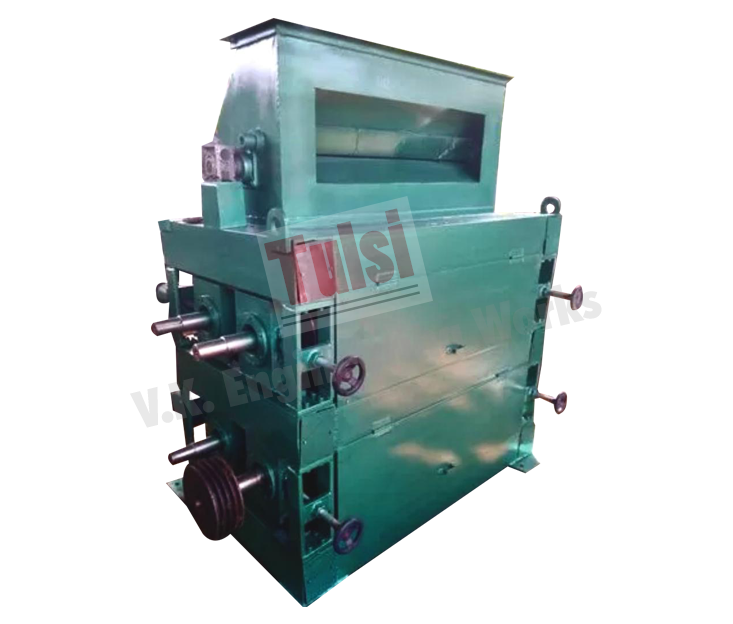

SEED CRACKER
TECHNICAL FEATURES
» Heavy duty fabrication.» Chilled cast iron rolls available as per seed & size requirement.
» Helps increasing output of the plant.
» Shock absorbing system preventing breakage by iron or other hard particles.
» Reduction in wear & tear of expellers.
Other Application on: Mustard Seed, Rapeseed, Sunflower Seed, Palm Kernel, Mahua Seed etc.
COPRA CUTTER
COPRA CUTTER FEATURES
» High speed of processing.» Robust fabrication.
» Duly hardened steel blades for more life.
» Available in different sizes & constructions.
AVAILBLE CAPACITIES
» 10 to 50 TPD

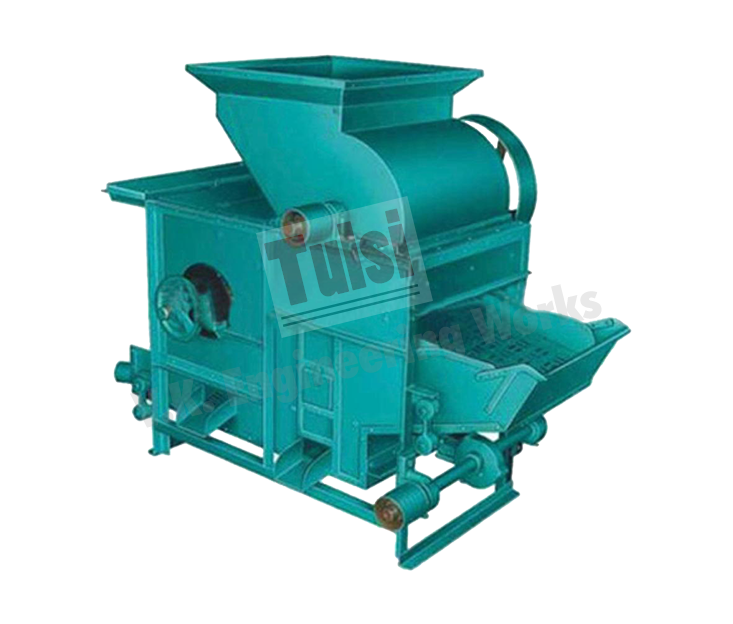

GROUNDNUT DECORTICATOR
TECHNICAL FEATURES
» Proper removing of red shell from groundnut.» Avialable in different sizes & constructions.
» Notable reduction in residual oil in cakes.
» Increased output of oil.
» High flow blower.
AVAILBLE CAPACITIES
» 10 to 30 TPD
BOILER
We are apex in the list of companies imparting the wide assortment of Wood/Oil/ Husk/ LDO fired Non-IBR Steam Boiler for the clients. These Vertical Non-IBR Steam Boiler s are manufactured with the premium quality of raw material procured from the authentic vendor base. Our Non IBR Steam Boilers widely earn accolades for their durability and superior quality and this help us to serve the both small and medium scale plants. Our priorities are client satisfaction so we offer the products that suit best to the firm. We do hold the capability of customizing the entire ranges as per the specification laid down by the client. Medium and high capacity Non-IBR Boilers also come with Super-Heater for producing dry steam.Fired by: Wood/ Coal/ Diesel/ Furnace Oil/ Husk/ Bagasse or other fuels
» Capacity range: 100kg/ hr to 900 kg/hr
» Pressure: Upto 17.54 kg/ cm²
