Double Chamber

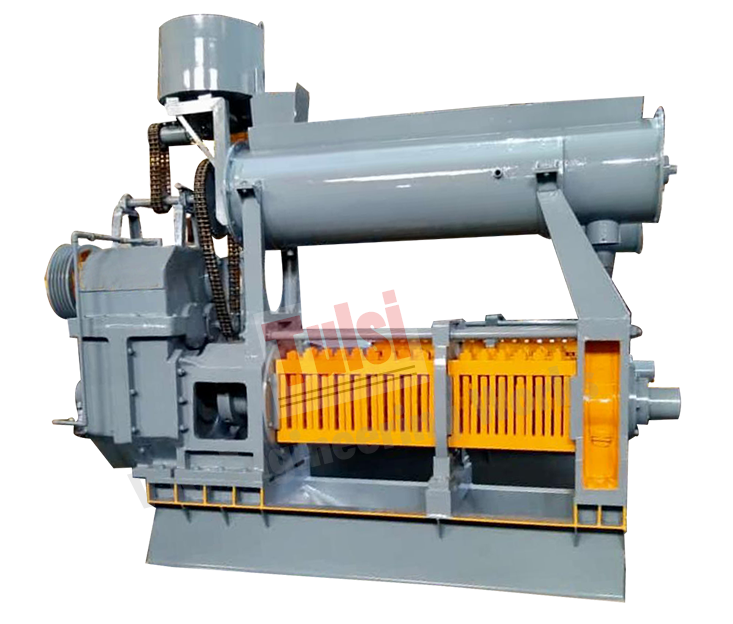

Model: TULSI 240

Double chamber oil expeller / oil extraction machine provides excellent features and reliability for full pressing to produce crude oil and full press cake from a various types of oil bearing seeds and nuts.

The Tulsi 240 is the mid range press and able to crush wide variety of oil seeds and nuts such as cottonseed, peanuts, sunflower seeds, mustard seeds, copra, etc. After R & D, We have designed and manufactured and oil press meet the needs of our clients and to deliver world-class performance and reliability for minimum investment. Made in India Oil Expeller at per with International Standards.

Features of Double Chamber Oil Expeller

» This model has been designed in a simple and symmetrical shape.
» Double Reduction Gear Box with helical gears of cast steel and pinion shafts of special steel.
» Gearbox is aligned with all the bodies on a single fabricated base.
» Main Worm Shaft can be withdrawn without Disturbing the Gear Box.
» Hard Faced Worm Assembly.
» Long Kettle provided with safety valve and pressure gauge.
» Steel Fabricated Base.
» Low Power Consumption & Less Maintenance.
» Superior quality of Oil & Cake.

Cooking Kettle : 48″ Diameter, 3 or 4 stage Vertical unit with fabricated shell, Steam Jackets, Agitators to prevent burning of seed, level indicator flap, center shaft driven by Independent Geared Motor, Steam Inlet, condensate outlet, Pipes, Valves, fittings & all necessary accessories.
